Installation of Oracle Applications R12.1.1 on Linux and vmware

The below article is step by step procedure to Install oracle E-Business suite R12.1.1 on Oracle Enterprise Linux 5.6 (32-bit) using vmware server 2 on windows 7 64 bit.

This is a single node Installation. (All services will be hosting on same machine 0 db, conc, web, forms etc)

I have Installed it on a virtual machine with 4gb ram, 120 GB of local disk space and 1 core cpu.

- Requires 80 GB of free space for fresh installation (excluding stage area)
- Requires 100+ GB of free space for vision installation (excl. stage)

I will split this configuration in 5 steps:

1) create and configure virtual machine
2) Install linux operating system
3) create stage Area
4) Perform all operating system per-requisites
5) Install oracle E-business suite R12.1.1

create and configure virtual machine:

>> Login to vmware Server console

>> click on add virtual machine

>> Here i have selected iso image for OS Installation, you can select local cd drive if u want.

>> Now the virtual machine is created and ready for Linux Installation

Install Linux operating system:

Here steps to Install Oracle Enterprise Linux 5.6 (32-bit). The below demonstration is for host orerp3 (another virtual machine created for R12 Installation). All steps are similar for all linux hosts.

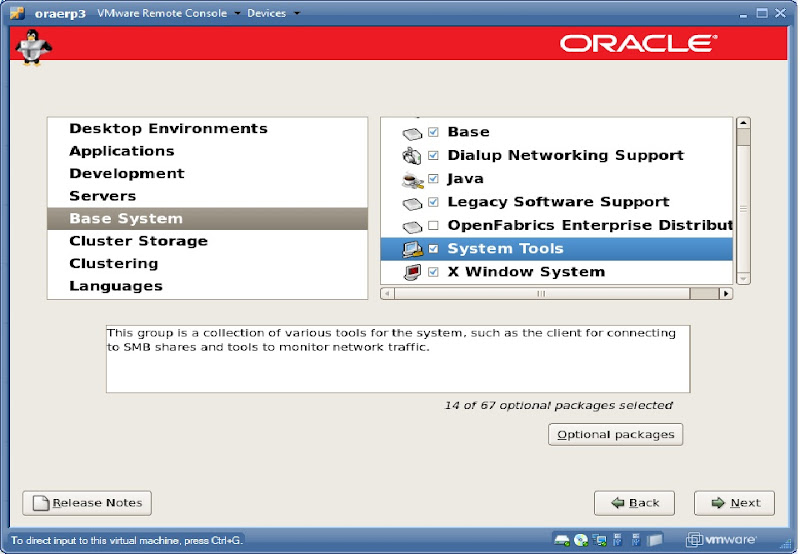

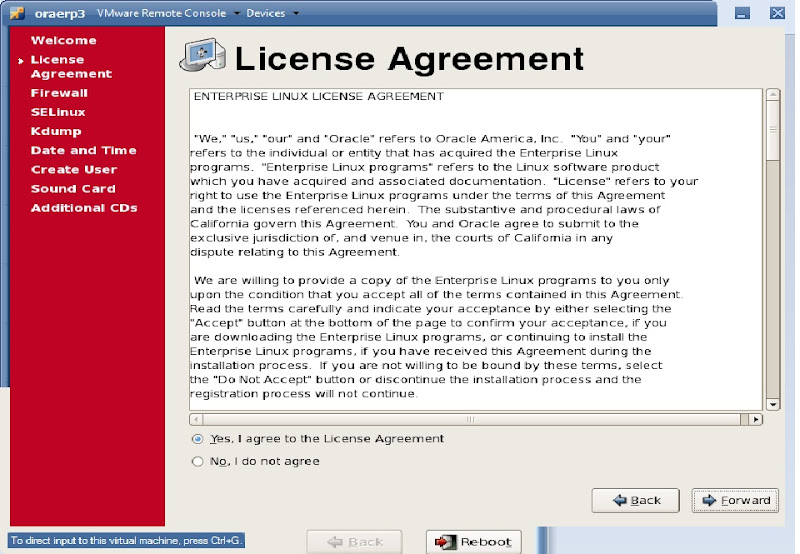

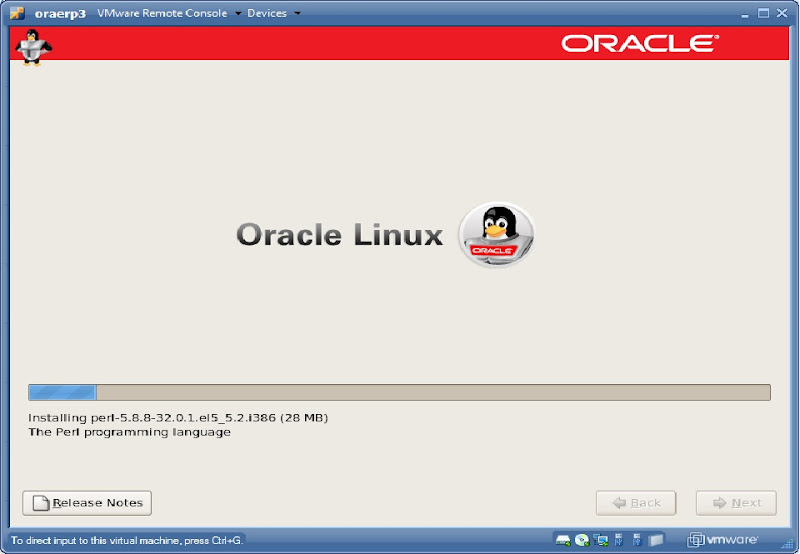

>> Follow step by step screens:

Perform all operating system per-requisites:

>> create OS group, user and directories:



[root@oraerp1 ~]# groupadd dbaerp
[root@oraerp1 ~]# useradd -G dbaerp applerp
[root@oraerp1 ~]# useradd -G dbaerp oraerp
[root@oraerp1 ~]# passwd applerp
Changing password for user applerp.
New UNIX password:
BAD PASSWORD: it is based on a dictionary word
Retype new UNIX password:
passwd: all authentication tokens updated successfully.
[root@oraerp1 ~]# passwd oraerp
Changing password for user oraerp.
New UNIX password:
BAD PASSWORD: it is based on a dictionary word
Retype new UNIX password:
passwd: all authentication tokens updated successfully.
[root@oraerp1 ~]# mkdir /u01/applR12
[root@oraerp1 ~]# mkdir /u01/oraR12
[root@oraerp1 ~]# chmod -R 775 /u01/applR12/
[root@oraerp1 ~]# chmod -R 775 /u01/oraR12
[root@oraerp1 ~]# chown -R applerp:dbaerp /u01/applR12/
[root@oraerp1 ~]# chown -R oraerp:dbaerp /u01/oraR12/
[root@oraerp1 ~]#

>> configure kernel parameters (Edit /etc/sysctl.conf file):



#All below kernel parameters are related to oracle E-biz
#################
kernel.shmall = 268435456
kernel.shmmax = 429496729
kernel.shmmni = 4096
kernel.sem = 256 32000 100 142
fs.file-max = 327679
net.ipv4.ip_local_port_range = 10000 65000
net.core.rmem_default = 262144
net.core.wmem_default = 262144
net.core.rmem_max = 262144
net.core.wmem_max = 4194304
:wq



[root@oraerp1]# vi /etc/security/limits.conf
*       hard    nofile 65536
*       soft    nofile 4096
*       hard    nproc  16384
*       soft    nproc  2047
:wq



[root@oraerp1 ~]# sysctl -p
net.ipv4.ip_forward = 0
net.ipv4.conf.default.rp_filter = 2
net.ipv4.conf.default.accept_source_route = 0
kernel.sysrq = 0
kernel.core_uses_pid = 1
net.ipv4.tcp_syncookies = 1
kernel.msgmnb = 65536
kernel.msgmax = 65536
kernel.shmmax = 4294967295
kernel.shmall = 268435456
kernel.shmmax = 429496729
kernel.shmmni = 4096
kernel.sem = 256 32000 100 142
fs.file-max = 327679
net.ipv4.ip_local_port_range = 10000 65000
net.core.rmem_default = 262144
net.core.wmem_default = 262144
net.core.rmem_max = 262144
net.core.wmem_max = 4194304
[root@oraerp1 ~]#

>> Install OS required OS packages (rpm's)

If selected all packages same as the above shown linux Installation package selection, then just need to Install the below rpm's:



[root@oraerp1 Server]# ls -l unixODBC*
-rw-r--r-- 1 root root 850413 Nov 17  2010 unixODBC-2.2.11-7.1.i386.rpm
-rw-r--r-- 1 root root 761234 Nov 17  2010 unixODBC-devel-2.2.11-7.1.i386.rpm
-rw-r--r-- 1 root root 573232 Nov 17  2010 unixODBC-kde-2.2.11-7.1.i386.rpm
[root@oraerp1 Server]# rpm -ivh unixODBC-2.2.11-7.1.i386.rpm
warning: unixODBC-2.2.11-7.1.i386.rpm: Header V3 DSA signature: NOKEY, key ID 1e5e0159
Preparing...                ########################################### [100%]
   1:unixODBC               ########################################### [100%]

[root@oraerp1 Server]# rpm -ivh unixODBC-devel-2.2.11-7.1.i386.rpm
warning: unixODBC-devel-2.2.11-7.1.i386.rpm: Header V3 DSA signature: NOKEY, key ID 1e5e0159
Preparing...                ########################################### [100%]
   1:unixODBC-devel         ########################################### [100%]

[root@oraerp1 Server]# ls -l openmotif*
-rw-r--r-- 1 root root 1374499 Nov 17  2010 openmotif22-2.2.3-18.i386.rpm
-rw-r--r-- 1 root root 1610158 Nov  3  2010 openmotif-2.3.1-5.el5_5.1.i386.rpm
-rw-r--r-- 1 root root 3102338 Nov  3  2010 openmotif-devel-2.3.1-5.el5_5.1.i386.rpm
[root@oraerp1 Server]# rpm -ivh openmotif22-2.2.3-18.i386.rpm
warning: openmotif22-2.2.3-18.i386.rpm: Header V3 DSA signature: NOKEY, key ID 1e5e0159
error: Failed dependencies:
        libXp.so.6 is needed by openmotif22-2.2.3-18.i386

[root@oraerp1 Server]# ls -l libXp*
-rw-r--r-- 1 root root 22852 Nov 17  2010 libXp-1.0.0-8.1.el5.i386.rpm
-rw-r--r-- 1 root root 15103 Nov 17  2010 libXp-devel-1.0.0-8.1.el5.i386.rpm
-rw-r--r-- 1 root root 46410 Nov 17  2010 libXpm-3.5.5-3.i386.rpm
-rw-r--r-- 1 root root 31307 Nov 17  2010 libXpm-devel-3.5.5-3.i386.rpm

[root@oraerp1 Server]# rpm -ivh libXp-1.0.0-8.1.el5.i386.rpm
warning: libXp-1.0.0-8.1.el5.i386.rpm: Header V3 DSA signature: NOKEY, key ID 1e5e0159
Preparing...                ########################################### [100%]
   1:libXp                  ########################################### [100%]
[root@oraerp1 Server]# rpm -ivh libXp-devel-1.0.0-8.1.el5.i386.rpm
warning: libXp-devel-1.0.0-8.1.el5.i386.rpm: Header V3 DSA signature: NOKEY, key ID 1e5e0159
Preparing...                ########################################### [100%]
   1:libXp-devel            ########################################### [100%]

[root@oraerp1 Server]# rpm -ivh openmotif22-2.2.3-18.i386.rpm
warning: openmotif22-2.2.3-18.i386.rpm: Header V3 DSA signature: NOKEY, key ID 1e5e0159
Preparing...                ########################################### [100%]
   1:openmotif22            ########################################### [100%]

[root@oraerp1 Server]# rpm -ivh libaio-devel-0.3.106-5.i386.rpm
warning: libaio-devel-0.3.106-5.i386.rpm: Header V3 DSA signature: NOKEY, key ID 1e5e0159
Preparing...                ########################################### [100%]
   1:libaio-devel           ########################################### [100%]

[root@oraerp1 Server]# ls -l sysstat-7.0.2-3.el5_5.1.i386.rpm
-rw-r--r-- 1 root root 174229 Nov 17  2010 sysstat-7.0.2-3.el5_5.1.i386.rpm
[root@oraerp1 Server]# rpm -ivh sysstat-7.0.2-3.el5_5.1.i386.rpm
warning: sysstat-7.0.2-3.el5_5.1.i386.rpm: Header V3 DSA signature: NOKEY, key ID 1e5e0159
Preparing...                ########################################### [100%]
   1:sysstat                ########################################### [100%]
[root@oraerp1 Server]#

>> download and Install patch "6078836" from MOS:



[root@oraerp1 6078836]# pwd
/u01/sw_home/6078836
[root@oraerp1 6078836]# ls
libdb.so.2  README.txt
[root@oraerp1 6078836]# ls -l /usr/lib/libdb.so.2
ls: /usr/lib/libdb.so.2: No such file or directory
[root@oraerp1 6078836]# cp libdb.so.2 /usr/lib/
[root@oraerp1 6078836]# ls -l /usr/lib/libdb.so.2
-rw-r--r-- 1 root root 5825 Nov 27 11:38 /usr/lib/libdb.so.2
[root@oraerp1 6078836]#

- This is because there is missing library file which is required for R12 Install

>> Run xhost + command to enable GUI windows:



[root@oraerp1 ~]# xhost +
access control disabled, clients can connect from any host
[root@oraerp1 ~]#

>> Create stage Area:

There are two ways we can create stage for R12
1. Stage using script adautostage.pl from start here CD
2. Manual stage - create directories and copy media as listed below



[root@oraerp1 Dumps]# cd R12.1.1_X86/
[root@oraerp1 R12.1.1_X86]# ls
oraAppDB  oraApps  oraAS  oraDB  startCD
[root@oraerp1 R12.1.1_X86]#



startCD  - copy Start Here Disk
oraApps  - copy APPL_TOP Disk1, Disk2
oraAS    - copy TOOLS Disk
oraDB    - copy RDBMS Disk
oraAppDB - copy Databases Disk1 to Disk9

- I have created the stage area in an external drive

>> Install oracle E-business suite R12.1.1:

>> Run rapidwiz from the satge area


[root@oraerp1 Disk1]# cd rapidwiz/
[root@oraerp1 rapidwiz]# ls
adautostg.pl   driver  images  oui           RapidWiz.ini         template
bin            etc     jlib    rapidwiz      RapidWizVersion      unzip
ClientWiz.cmd  File    jre     RapidWiz.cmd  RapidWizVersion.cmd
[root@oraerp1 rapidwiz]# pwd
/media/DATA_STORE/Dumps/R12.1.1_X86/startCD/Disk1/rapidwiz
[root@oraerp1 rapidwiz]# ./rapidwiz

>> Follow the Installation screens

This article will be helpful for the beginners who want to learn how to Install oracle E-business suite R12.1.1 on Linux platform on their personal computers/laptops and also for those who want to deploy in an Enterprise server environment.

Your comments are highly appreciated if you have any queries/suggestion in regards with this article.

thanks.

Happy reading :)

Labels: 32 bit, Installation R12.1.1 linux 5, single node, Vmware, windows7
